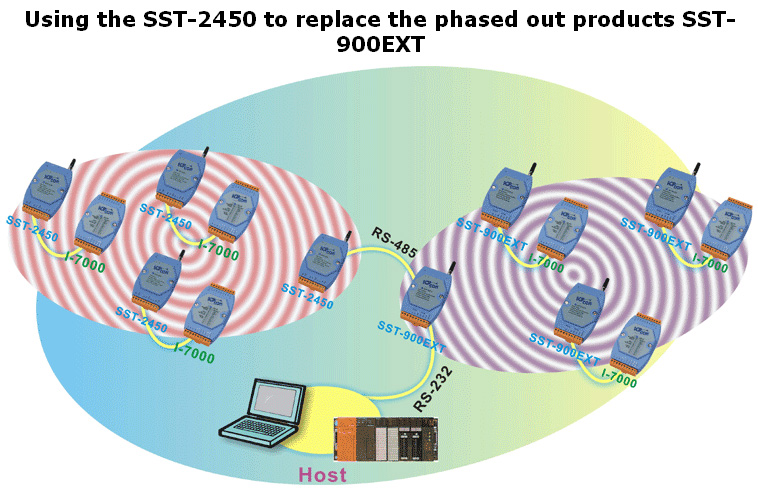

SST-2450EXT is a spread spectrum radio modem with controlling an RS-232/RS-485 interface port. It is designed for data acquisition and control applications between a host and remote sensors. It is also useful for those applications where the installation of cable wire is inconvenient. The SST-2450 can be used not only in peer-to-peer mode, but also in a multi-point structure.

The SST-2450 is based on a direct sequence spread spectrum and RF technology, operating In the ISM bands with a Frequency Range of 2410.496MHz~2471.936MHz. The Channel Spacing is 4.096MHz.

• Half-duplex up to 57600bps
• Auto band -rate setting
• ISM band
• Full-duplex or half-duplex
• Spread Spectrum technology

• Frequency Range: 2.4GHz (2410.496MHz ~ 2471.936MHz)
• Channel Spacing: 4.096MHz
• Output Power: 0.05W
• Transmit power : 17dBm±dBm
• Modulation technique: GMSK
• Radio technique: Direct sequence spread spectrum
• Duplex Mode: TDD (for Full-duplex)

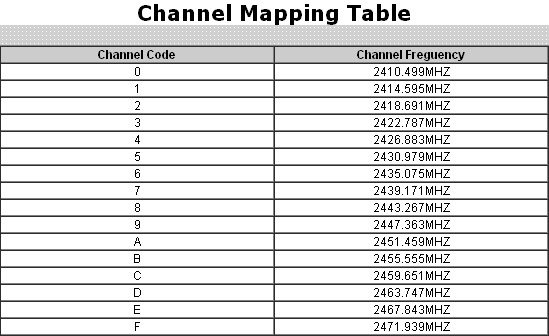

• Number of channels: 16
• Number of PN codes: 16
• PN code rate: 1.365 Mchips /sec.
• Communication distance: Depends on external antenna; default is 300M
• Maximum data transfer rate in asynchronous mode:
  • Full-duplex mode: 9.6Kbps
  • Half-duplex mode: 28.2K
• Maximum data transfer rate in synchronous mode:
  • Full-duplex mode: 19.2Kbps
  • Half-duplex mode: 57.6K
• Setting Method: Software setting
• Antenna: Can bend Antenna
• Connector : Reverse-Polarity SMA-Jack
• Data Format: N, 8, 1 or E, 8, 1 (dependent on software setting)
• Data bit error rate Antenna: < 1/1000@ - 102dBm
• Input voltage: 10 ~ 30Vdc
• Input current: Typically less than 250mA
• Consumption:
  • Transmission : 2W
  • Receive : 1W
• Size: 106mm x 76mm x 31mm (L x W x H)
• Weight: 200g
• Operating temperature: -10°C ~ 50°C
• Operating humility: 0 ~ 90%
• SST-2450 can work together with SST-2400 (Change the 8051 chip of SST-2400)
• Din Rail Mount



Gain Pattern:

E-Plane Field Patterns

H-Plane Field Patterns
